EffectBalloon
EffectBalloon creates a colored balloon with given reflectivity and
opacity at a starting x coord and floor Y coordinate. The balloon hops on
the image nhops times to the final x coordinate and floor Y coordinate.
Floor Y will be the base below which the balloon does not descend. The
maximum rise of the balloon above this floor y is given by value of rise.
Atleast 8 frames per hop must be input for this effect. Preferably do not
exceed 127 for any color component. Refl(ectivity) should not exceed
opacity. Light direction and its offset as %age of radius in the direction
are other parameters. If light is "omni" then lightx and lighty coordinates
may be specified. Instead of light coming from one direction it will
illuminate the balloon from the lightx and lighty coordinates. Offset
parameter will still have effect ( for the light can be out of plane)..
RGB32 RGB24, YUY2 and YV12 only are supported at this time.
Details of parameters
| Description |
Name |
Type |
Limits |
Default |
| clip |
|
clip |
|
none |
| Effect start frame number |
sf |
Integer |
within clip |
first frame |
| Effect end frame number |
ef |
Integer |
within clip and at least 8 times nhops more than start frame |
last frame |
| Radius of balloon |
radius |
integer |
8 or more, less than 1/4th of smaller frame dimension |
1/8th smaller frame dimension |
| RGB color of balloon |
color |
integer |
RRGGBB color value |
0xff |
| Opacity %age |
opacity |
integer |
0 to 100 |
50 |
| number of hops the balloon makes |
nhops |
integer |
not more than 1/8 of number of frames in effect |
1 |
| Maximum rise of balloon |
rise |
integer |
minimum radius, maximum floory-radius |
floory-radius |
| starting x coordinate of center of balloon |
startx |
integer |
minimum radius, max frame width-radius |
radius |
| Final x coordinate of center of balloon |
finalx |
integer |
minimum radius, max frame width-radius |
width-radius |
| Floor Y coordinate of center of balloon |
floory |
integer |
minimum radius, max frame height-radius |
height-radius |
| Direction of illumination of balloon |
light |
string |
"north""east" "south" "west" "front" "ne" "nw" "se" "sw" "omni" |
"front" |
| Reflectivity %age |
refl |
integer |
0 to 100, less than opacity |
40 |
| light offset %age (of radius) perpendicular to image plane.
not used for front lighting |
offset |
integer |
0 to 100 |
80 |
| light x coord for Omni option |
lightx |
integer |
In frame |
Frame width center |
| light Y coord for Omni option |
lighty |
integer |
In frame |
Frame top |
#Usage examples:-
EffectBalloon(last,51,190)
EffectBalloon(last,51,190, 20,$3f7f4f,50,4,200,600,20,400, "east",40,60)
EffectBalloon(last,51,190, color=$cc00, nhops=6)
EffectBalloon(last,51,190, color=127,opacity=75, refl=20)
EffectBalloon(last,51,190, radius= 40, refl=40, light="omni", lightx=300, lighty=240)
EffectBalloon(last,51,190, rise=300, light="west", offset=50)

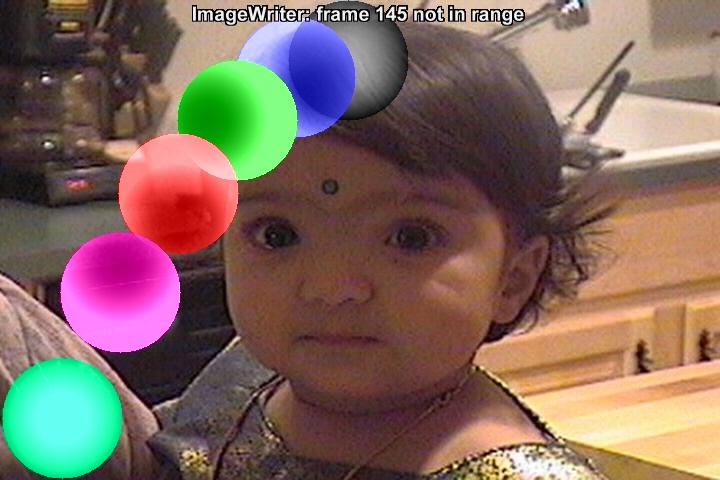

Image with effect (repeated six times to get 6 balloons) :
