Aspect ratios

Introduction

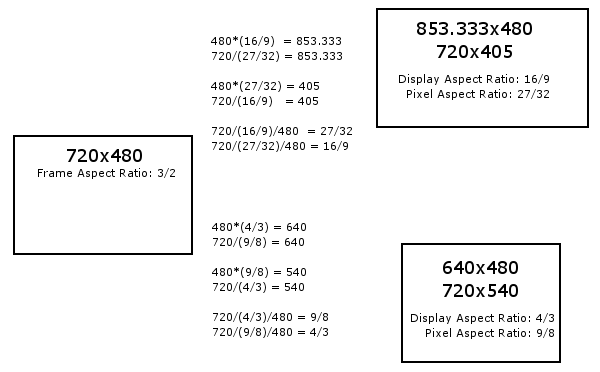

Diagram above is an example of the calculations one can do with a DVD source (left side). This is an oversimplified DVD example (numbers are not 100% accurate, the math is), but it should help in understanding what is going on.

Acronyms and their possible meanings

AR: Aspect Ratio

DAR: Display Aspect Ratio

FAR: Frame Aspect Ratio

IAR: Image Aspect Ratio; Intended Aspect Ratio

MAR: Movie Aspect Ratio; Modified Aspect Ratio

OAR: Original Aspect Ratio

PAR: Pixel Aspect Ratio; Picture Aspect Ratio

RAR: Raster Aspect Ratio

SAR: Sample Aspect Ratio; Signal Aspect Ratio; Source Aspect Ratio; Storage Aspect Ratio
