RGBAdjust

RGBAdjust has many different methods of changing the color and luminance of your RGB clips. Gain, bias (offset) and gamma can be set independently on each channel. Also included are an analysis function and a dither option.

All settings for this filter are optional. ColorYUV works in a similar manner for YUV clips.

• AVS+ all RGB and RGBA color formats are supported.

Syntax and Parameters

RGBAdjust(clip clip [,
     float r, float g, float b, float a,
     float rb, float gb, float bb, float ab,
     float rg, float gg, float bg, float ag,
     bool analyze, bool dither, AVS+ bool conditional, AVS+ bool condvarsuffix ] )

float  r = 1.0

float  g = 1.0

float  b = 1.0

Red, green and blue scaling factor. Range 0.0 to 255.0

For example, r=3.0 multiplies the red channel pixel values by 3.

AVS+ autoscaled – works without changes at all bit depths, gain is bit depth independent.

float  a = 1.0

Alpha adjustment—the transparency information on a per-pixel basis.

An alpha value of zero represents full transparency, and a value of 1 represents a full opacity.

float  rb = 0.0

float  gb = 0.0

float  bb = 0.0

float  ab = 0.0

Bias adjustment—add a fixed positive or negative value to a channel's pixel values. For example,

rb=16 will add 16 to all red pixel values and

rb=-32 will subtract 32 from all red pixel values.

AVS+ not autoscaled – caller must scale arguments by 4 for 10-bit, etc.

float  rg = 1.0

float  gg = 1.0

float  bg = 1.0

float  ag = 1.0

Gamma adjustment—an exponential gain factor. For example,

rg=1.2 will brighten the red pixel values and

gg=0.8 will darken the green pixel values.

bool  analyze = false

If true, RGBAdjust will print color channel statistics on the screen (see example below)

• There are Maximum and Minimum values for all channels.
• There is an Average and a Standard Deviation for all channels.
• There is Loose Minimum and Loose Maximum which ignore the brightest and darkest 0.4% (1/256) pixels.

AVS+ parameter is supported for 32 bit float color spaces as well, but loose min/max is based on a 16bit quantized data (loose min/max is based on an internal histogram)

bool  dither = false

If true, ordered dithering is applied when doing the adjustment.

AVS+ parameter is ignored for 32 bit float color spaces

bool  conditional = false

AVS+ If true, the global variables "rgbadjust_xxx" with xxx = r, g, b, a, rb, gb, bb, ab, rg, gg, bg, ag are read each frame, and applied.

It is possible to modify these variables using FrameEvaluate or ConditionalReader. (functionality similar to ColorYUV)

string  condvarsuffix = ""

AVS+ this parameter works similarly in ColorYUV, RGBAdjust, Overlay, ConditionalReader.

Allows multiple filter instances to use differently named conditional parameters, thus preventing collision and overwrite of variables which are used by different ConditionalReader instances.

See Conditional Variables section of http://avisynth.nl/index.php/ColorYUV.

How does it work: when reading the global variables, the "condvarsuffix" parameter is appended to the variable name.

E.g. ColorYUV will read "coloryuv_gain_y_a" instead of "coloryuv_gain_y" when condvarsuffix = "_a" is provided for ColorYUV.

In the matching ConditionalReader one have to use the modified name as well:

 ConditionalReader("coloryuvoffset.txt", "coloryuv_gain_y", false, CondVarSuffix = "_a") # "_a" is added here by parameter
 ConditionalReader("rgbfix.txt", "rgbadjust_r", false, CondVarSuffix = "_1") # "_1" is added here by parameter
 ConditionalReader("rgbfix2.txt", "rgbadjust_r", false, CondVarSuffix = "_2") # "_2" is added here by parameter

or specify the suffixed name directly:

 ConditionalReader("coloryuvoffset.txt", "coloryuv_gain_y_a", false) # "_a" is added here manually

Notes

• All arguments default—leaves the clip untouched:

RGBAdjust(1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1)

• Keep in mind ALL the channels are not scaled to accommodate changes to one—for that you should use Levels.

So doing something like:

RGBAdjust(2, 1, 1, 1)

will get you a whole lot of clipped red. If you WANT a whole lot of clipped red, there ya go - but if you want MORE red without clipping you'd do

Levels(0, 1, 255, 0, 128).RGBAdjust(2, 1, 1, 1)

This would scale all the levels (and average luminance) by half, then double the red. Or more compact

RGBAdjust(1.0, 0.5, 0.5, 1.0)

This leaves the red and halves the green and blue.

• To invert the alpha channel

RGBAdjust(a=-1.0, ab=255)

Thus alpha pixels values become a=(255-a).

Examples

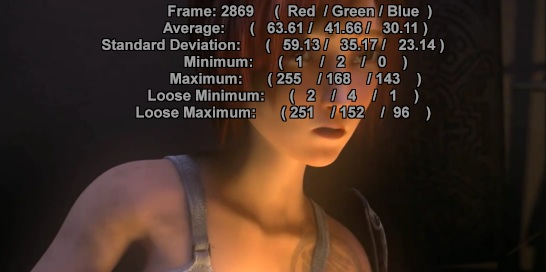

• Demonstrating analyze output

FFmpegSource2("sintel.mp4")
ConvertToRGB32
BicubicResize(546, 272)
RGBAdjust(analyze=true)

Changes

AVS+ 3.7.1	analyze for 32bit float color spaces
AVS+ r2915	Added condvarsuffix
AVS+ r2724	Added 32 bit float. Added conditional
v2.60	Added dither.
v2.56	Added offsets, gamma, analyze.
