These plugins are free to use and be properly acknowledged. These programs are free software: you can redistribute them and/or modify them under the terms of the GNU General Public License as published by the Free Software Foundation, version 3 of the License. These programs are distributed in the hope that these will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. A copy of the GNU General Public License is at GPL . For details of how to contact author V. C. Mohan
All these plugins are for Avisynth 2.5+ version. The plugin zip file contains the dll, and documentation without images. Seperate zip files for images and source code are included wherever they exist. This scheme is used as images occupy much of storage. Some may not be interested in source code. However at this site all images are displayed. The dlls can be placed in plugins folder for autoloading. A LoadPlugin call will be needed if the plugin dll is put in any other folder. There are many functions in the ColorIt, TransAll and EffectsMany plugins and as Avisynth has a limit on number of plugins and or functions for autoloading, it may be preferable to keep these plugins in a different folder and invoke loadplugin.
Always the latest version of the filter will be availble at this site. The older versions will be deleted. Clicking under the Filter name column entry transfers to a page wherein a more detailed description of the filter, its usage and examples are depicted. Download is straight from this page by clicking under the download plugin or images or source code column of the table.
| Filter Name. Link for full description | Date last modified | Brief Description | Download Plugin | Download images | Download source code |
| AdaptiveMedian | Mar 9, 2009 | The size of local grid is increased till a satisfactory statistc of mean, minimum and median are obtained for filtering noise | AdaptiveMedian | images | source |
| ColorIt | Sep 17, 2005 | 14 functions to detect and create edge masks,floodfill, line fill,inlay, morphing, Gaussian Blur and recoloring. Suitable for coloring or recoloring a video. | ColorIt | images | source |
| Corr2D | Sep 26, 2008 | Displays cross correlation between adjacent frames Requireslibfftw3f-3.dll or FFTw3.dll or fftw.dll to be in the path. | Corr2D plugin | no images | Corr2D source |
| DeBarrel | Sep 23, 2008 | Corrects for barrel type or pincushion type distortion | DeBarrel | images | source |
| DeJitter | Mar 16, 2006 | Corrects horizontal jitter seen during some bad VHS conversions | DeJitter | images | source |
| DeNoise | Mar 9, 2009 | Using global variance and local variance and mean in a moving grid, noise is minimized. | DeNoise | images | source |
| DeSaltPepper | Mar 10, 2009 | Salt and Pepper noise can be removed using morphology technique | DeSaltPepper | image | source |
| DeVeed | March 12, 2009 | Low level noise filtered | DeVeed | image | source |
| EffectsMany | Feb 11, 2009 | Creates 34 types of special effects on images. | EffectsMany | images | source |
| FanFilter | Oct 22, 2008 | Regular vertical frequency interference is filtered in spatial domain | FanFilter | images | source |

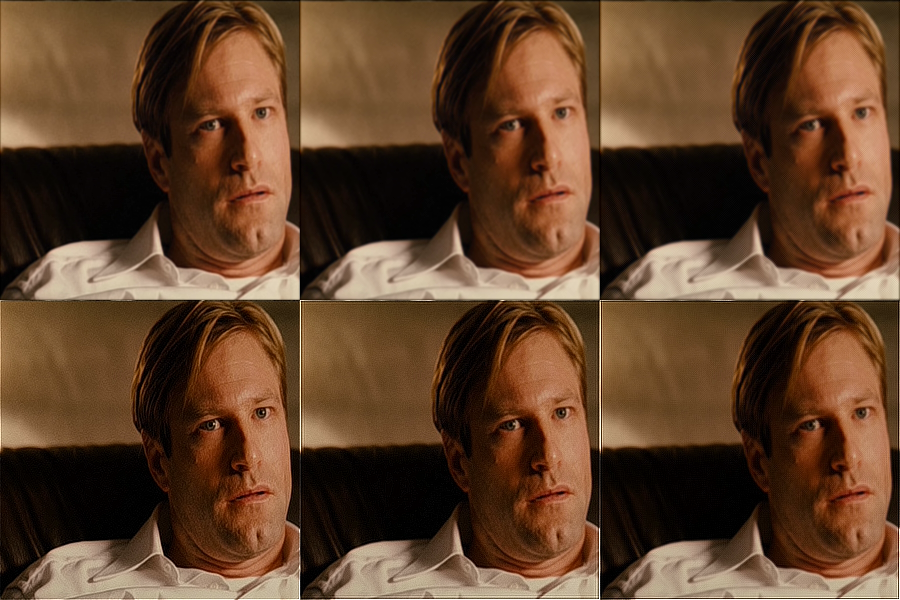

| FQFocusDefocus | Aug 3, 2009 | Mild focus and defocus of images in frequency domain. Requireslibfftw3f-3.dll or FFTw3.dll or fftw.dll to be in the path. | FFTQuiver | images | source |
| FFTQuiver | Feb 22, 2009 | 2 Functions for frequency domain customizable filtering in one or two dimensions. A third function included is for using a given 2d Mask as a convolutional filter. Homomorphic filtering can also be done. Requireslibfftw3f-3.dll or FFTw3.dll or fftw.dll to be in the path. | FFTQuiver | images | source |
| FQuiver | Sep 15, 2006 | 2 Functions for frequency domain filtering in one or two dimensions, similar to FFTQuiver above. Does not require any other dll, but slower than FFTQuiver. | FQuiver | images | source |
| FQSharp | Mar 1, 2008 | Intoduces focus or motion blur, visual aid to estimate blur and removal by deconvolution. Requireslibfftw3f-3.dll or FFTw3.dll or fftw.dll to be in the path. | FQSharp | images | source |
| FXpanse | Oct 4, 2008 | Creates a single full scene from panned input. Requireslibfftw3f-3.dll or FFTw3.dll or fftw.dll to be in the path. | FXpanse plugin | images | source |

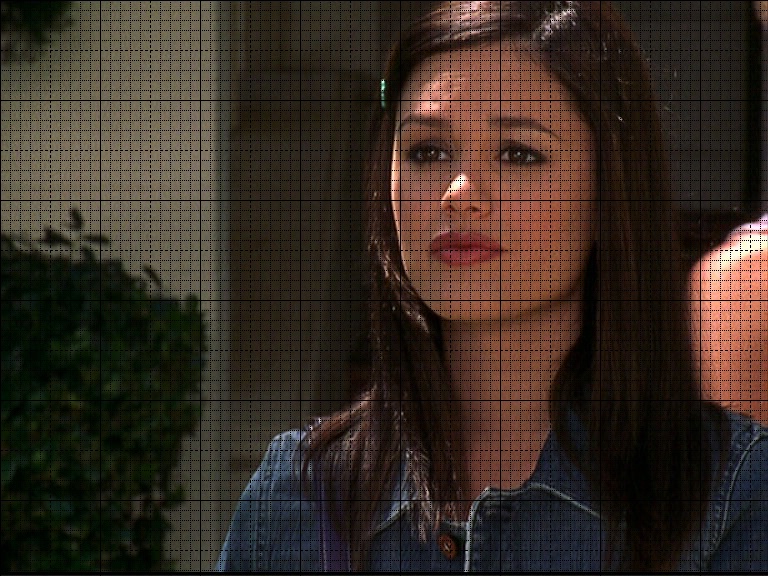

| Grid | March 15, 2006 | Draws a grid on image to enable read row and column coordinates. Especially useful for use with ColorIt and Reform filter plugins | Grid | images | source |
| HBlur | Feb 29, 2008 | Blurs the image as in out of focus or linear motion or rectangular grid | HBlur | images | source |
| HistogramAdjust | July 30, 2009 | The histogram of the image is equalized or matched with that of another image or mimicked for equalization | HistogramAdjust | images | source |
| HollywoodSquares | Nov 1, 2004 | Creates popup album, akin to Hollywood squares TV show | HollywoodSquares | images | source |
| NeuralNet | Nov 12, 2005 | Neural networks through back propogation learn and filter some types of noise. Classification and linear type Networks are included. | NeuralNet | images | source |
| NirMalam | Mar 16, 2009 | Estimates noise parameters from either user specified or auto selected window and reduces in a moving grid. | NirMalam | images | source |
| Perspective | Aug 23, 2008 | perspective <-> Front view transform | Perspective dll | images | source |
| Peep | Mar 18, 2009 | Peep in an elliptic or rectangular window an image from different clip | Peep dll | images | source |
| Reform | Mar 18, 2009 | Skewed images are corrected or vice versa, useful if video is recorded with incorrectly located camera. Sometimes refered to as perspective correction | Reform | images | source |

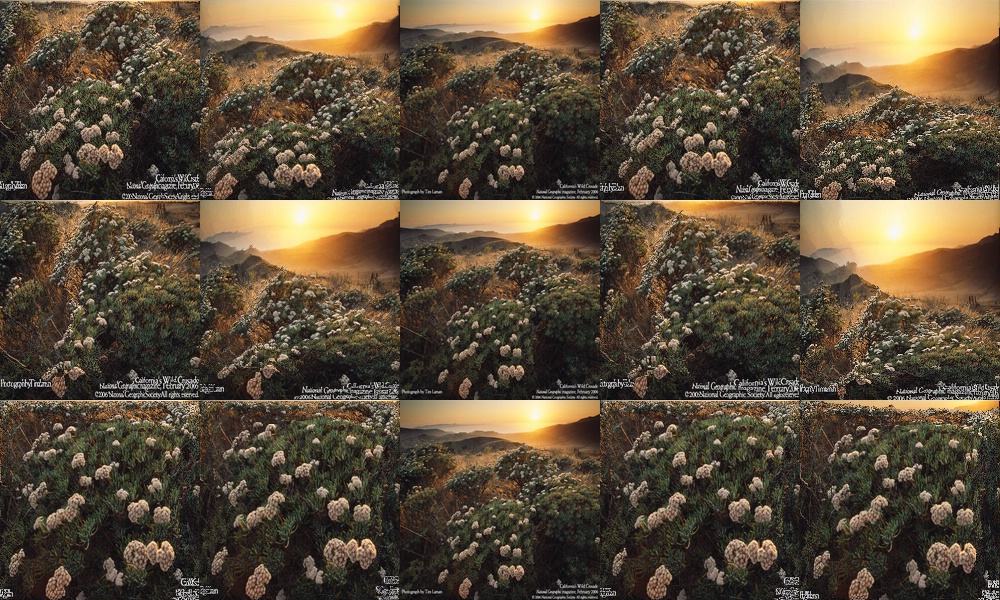

| ReTarget | Mar 18 2009 | Through seam carving video is re targetted to a smaller size output device | ReTarget | images | source |
| ReTouch | Mar 18, 2009 | Using watershed segmentation and floodfill algorithms, image is segmented into basins and pixel values are shifted or stretched | ReTouch | images | source |
| Seamer | Mar 18, 2008 | images are carved along seams for resizing. | Seamer dll | images | source |
| SegmentedAmp | Mar 22, 2009 | images are segmented using watershed algorithm and smoothened and or sharpened. | SegmentedAmp | images | source |
| Spinner | Mar 16, 2009 | Rotates frame or part of it | Spinner plugin | images | source |

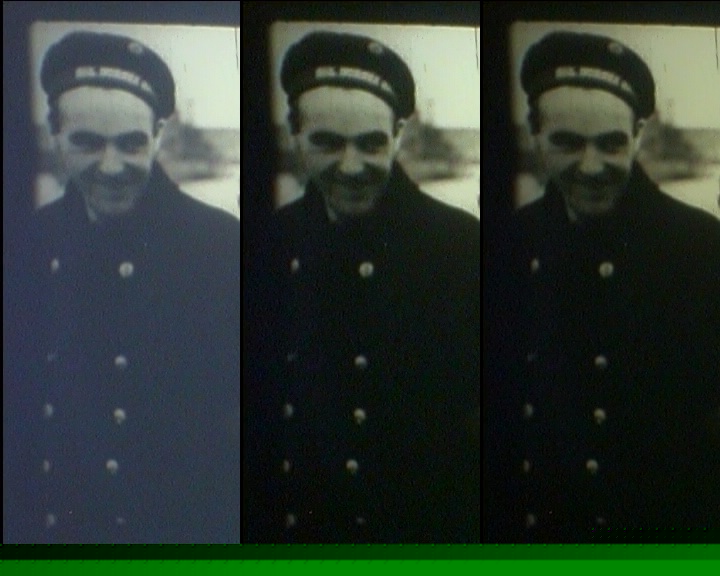

| TCNAmpAdjust Plugin | Apr 17, 2007 | Amplitude correction of certain telecined material | TCNAmpAdjust | TCNAmpAdjust | TCNAmpAdjust Source |
| TransAll Plugin | Aug 27, 2009 | 28 scene transition functions | TransAll | images | source |
| Unfurl | 4 sep, 2008 | stitches into a panorama | Unfurl dll | unfurl images | Unfurl Source |
| VarianSlim | Nov 19, 2006 | From an auto selected or user specified window processing parameters are derived. In a moving grid noise is minimized with the derived parameters. | VarianSlim | images | source |
| WaterShed | Sep 14, 2006 | Assuming image grey values to be elevations, it is segmented into basins and watershed lines. Useful in certain medical image analysis and recoloring work. | WaterShed | images | source |
| WeedFN | Dec 11, 2006 | Low level noise filtered | WeedFN | image | source |
